Purchasing privacy slats without verifying your existing fence specifications is a common and costly mistake. Homeowners and contractors frequently order materials based on fence height alone, assuming all chain link fabric is identical. This oversight leads to loose fits, complete installation failures, or expensive return shipping fees. Chain link fences appear highly standardized from a distance. However, they vary significantly in structural dimensions, specifically regarding mesh size, wire gauge, and overall fabric height. Selecting the correct chain link slat requires matching the product specifications directly to your existing infrastructure. You need to measure your existing fencing accurately, evaluate various slat styles against your specific privacy and security requirements, and calculate the exact material needs required for a seamless, rattle-free installation.
Mesh Size Dictates Compatibility: The inside diagonal measurement of the chain link diamond is the single most critical factor; a slat designed for a 2-inch mesh will fail or fit loosely in a 2-⅜ inch mesh.
Privacy vs. Airflow Trade-off: Higher privacy percentages (e.g., winged slats offering 90%+) require stricter mesh tolerances and significantly increase wind load on the fence structure.
Locking Mechanisms Matter: The choice between bottom-locking, top-locking, and self-locking (friction) slats impacts both installation speed and long-term durability in extreme weather.
Coverage Calculations Require Precision: Buying by linear footage requires factoring in specific chain link slat sizes and bag yields, which vary heavily by manufacturer and slat style.
Table of Contents
Establishing the baseline success criteria for slat installation is straightforward. You want to achieve a secure, rattle-free fit without forcing or damaging the materials. Inserting high-density polyethylene (HDPE) strips into a galvanized steel web requires exact dimensional alignment. If the measurements are off by even a fraction of an inch, the project will fail. The steel wire does not forgive, and forcing plastic into a tight space will only result in warped materials and wasted labor.

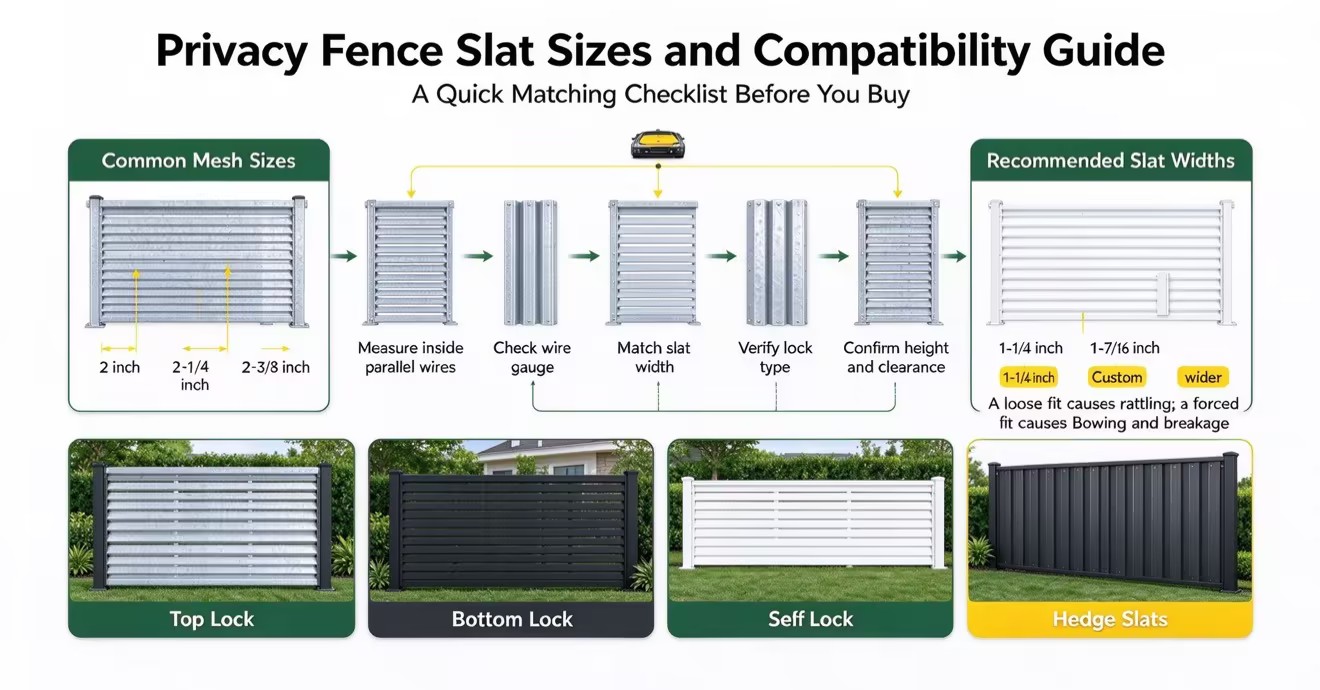

Accurate chain link fence measurements are essential for choosing compatible privacy slats. Before ordering, check the mesh opening, wire gauge, fence height, and slat installation requirements.
Mesh size is measured between the inside faces of opposite parallel wires, rather than across the longest diagonal of the diamond.
Follow these steps:
Select an undamaged section of fence mesh.
Measure the clear distance between opposite parallel wires.
Repeat the measurement at several locations.
Record the mesh size and confirm the manufacturer's measurement convention.
Accurate measurements help prevent loose, oversized, or difficult-to-install slats.
Wire gauge affects the available space inside the chain link mesh.
Thicker wires generally reduce the clear opening compared with thinner wires of the same nominal mesh size.
Before purchasing privacy slats, verify both the mesh dimensions and wire thickness against the supplier's product specifications.
Privacy slat width must match the existing fence mesh and the selected slat profile.
Common chain link mesh sizes include 2-inch, 2¼-inch, and 2⅜-inch openings. However, compatible slat widths vary by manufacturer and design.
Measurement | What to Check | Why It Matters |
|---|---|---|
Mesh Opening | Clear distance between opposite wires | Determines slat compatibility |
Wire Gauge | Wire thickness | Affects available clearance |
Slat Width | Manufacturer-specified dimensions | Prevents loose or overly tight installation |
Slat Profile | Flat, tubular, or winged | Influences fit and privacy coverage |
Locking System | Top-locking, bottom-locking, or self-locking | Determines installation requirements |
Always confirm compatibility using the actual product dimensions rather than nominal mesh size alone.
Measure the chain link fabric from its top edge to its bottom edge, excluding unrelated hardware such as post caps or barbed-wire extensions.
Slat length may be shorter than the nominal fence height to accommodate locking channels and installation clearance.
The correct deduction depends on the product design. Check the manufacturer's sizing instructions before ordering.
Different privacy slat designs offer different levels of coverage, installation convenience, and durability. The best option depends on fence dimensions, privacy requirements, and outdoor conditions.
Tubular slats provide a uniform appearance and are commonly used for residential and commercial chain link fences.
Depending on the design, slats may use top-locking or bottom-locking channels to maintain their position.
Buyers should compare slat dimensions, fixing methods, and material specifications.
Heavy-duty slats are designed for applications requiring greater rigidity or impact resistance.
They may feature thicker profiles or reinforced construction.
Before installation, verify the additional weight, fence condition, and wind-load requirements.
Winged slats feature flexible side profiles that help reduce gaps between the slats and the chain link mesh.
They are suitable for projects prioritizing consistent coverage and a secure fit.
Kendash offers Winged PVC Privacy Slats for Chain Link Fences, available in multiple colors, materials, thickness options, and customizable lengths.
Buyers should confirm the required slat width and compatible mesh size before purchasing.
Self-locking slats are designed to remain in position without a separate continuous locking channel.
They may simplify installation in certain fence configurations.
However, suitability depends on the slat profile, mesh opening, and installation instructions.
Hedge-style slats imitate natural foliage, creating a softer appearance than conventional plastic inserts.
They may suit decorative gardens and landscaped boundaries but require inspection for debris buildup and additional weight.
Slat Type | Main Advantage | Best Application |
|---|---|---|
Tubular Slats | Uniform appearance | Standard residential fencing |
Heavy-Duty Slats | Greater structural rigidity | Commercial and exposed areas |
Winged Slats | Improved gap coverage | Higher privacy requirements |
Self-Locking Slats | Simplified fixing system | Compatible existing fences |
Hedge Slats | Natural decorative appearance | Gardens and landscaping |
Greater visual coverage can increase wind loads on the fence.
Check post stability, mesh condition, and local wind requirements before installing high-coverage slats.
Privacy ratings should be confirmed using manufacturer test data where available.
Privacy slats are available in different colors and finishes to match residential, commercial, and landscape designs.
Consider UV resistance, heat exposure, and long-term appearance when choosing colors.
Kendash also supplies Chain Link Fence Privacy PE Screens for buyers seeking a flexible alternative to rigid slats.
Before purchasing chain link privacy slats, confirm:
Mesh opening and wire gauge.
Fence height and required slat length.
Material, thickness, and profile.
Locking method and accessories.
Color options and UV resistance.
Minimum order quantity and customization requirements.
For wholesale buyers, requesting product samples and dimensional specifications helps ensure compatibility before bulk ordering.
Accurate material calculation prevents project delays caused by under-ordering and protects your budget from over-ordering. You need a mathematical framework to determine exact coverage. Guessing based on rough property lines will leave you short on materials.
Begin by measuring the total linear footage of your fence line. Use a 100-foot fiberglass measuring tape for accuracy. Measure each straight run independently. Isolate the gates. Do not include the width of the gate openings in your main fence line calculation, as gates often require different slat lengths or custom cuts around the hinges and latches.
Measure Run A from the corner post to the gate post.
Measure Run B from the opposite gate post to the next corner post.
Measure the width of the gate fabric separately.
Add the runs together to find your total main-line linear footage.
Specific slat widths directly impact your bag coverage. A bag of narrow 1-¼ inch slats requires more individual pieces to cover a 10-foot section than a bag of 1-7/16 inch slats. Most manufacturers package slats to cover exactly 10 linear feet of fence, assuming a standard 2-inch mesh. However, if you install those same slats in a 2-¼ inch mesh, the bag will cover slightly more distance because the diamonds are wider.
Slat Width | Assumed Mesh Size | Approximate Slats Per Bag | Standard Coverage Per Bag |
|---|---|---|---|
1-1/4 inch | 2 inch | 82 - 85 | 10 Linear Feet |
1-7/16 inch | 2 inch | 82 | 10 Linear Feet |
Winged (1-7/16 inch core) | 2 inch | 82 | 10 Linear Feet |
Hedge Slats | 2 inch | 41 (Double width) | 10 Linear Feet |
Use a standardized calculation matrix. Divide your total linear feet by the linear feet covered per bag. For example, if you have 140 linear feet of fencing and each bag covers 10 linear feet, you need 14 bags. Always verify the manufacturer's specific coverage yield before applying this formula, as packaging standards vary.
You must factor in waste. A standard overage percentage of 5% to 10% is required for any professional installation. This overage accounts for slats damaged during installation, miscuts around tension bands, and gate framing anomalies. Gates are often stretched tighter than the main fence line, which can alter the diamond shape and require more slats per foot. If your calculation dictates 14 bags, order 15 to ensure you have enough material to complete the job without waiting for a second shipment.
Post-purchase implementation carries physical realities and potential failures. Understanding these risks allows you to prepare the site and adjust your installation methods accordingly. Installing slats is labor-intensive, and poor site preparation will double your installation time.
Wind load is the most critical risk factor. A standard chain link fence is porous. It allows wind to pass through the mesh with minimal resistance. Adding a privacy system transforms that porous fence into a solid sail. This drastically increases the wind resistance and the physical strain on the posts.
Privacy Level | Wind Resistance Increase | Recommended Post Spacing | Footing Requirement |
|---|---|---|---|
70% - 80% (Standard) | Moderate | 10 Feet Maximum | Standard Concrete Depth |
90% - 98% (Winged) | Severe | 8 Feet Maximum | Deep Concrete Footings (Below Frost Line) |
Mitigation requires a thorough structural inspection. Check your post depth and concrete footings. Verify the diameter of your terminal posts. If you live in a high-wind zone and plan to install high-privacy winged slats, you may need to reinforce your line posts or add mid-rail bracing to prevent the fence from blowing over during a storm. Driven posts without concrete footings will almost certainly fail under the wind load of a 90% privacy fence.
High-Density Polyethylene (HDPE) expands and contracts with temperature fluctuations. Extreme heat causes the plastic to lengthen and widen. Extreme cold causes it to shrink and become brittle.
This material property impacts installation friction. Installing slats on a 95-degree afternoon will be significantly harder than on a 65-degree morning because the plastic swells. Furthermore, if you install the slats too tightly against the locking channels during cold weather, the plastic will warp and bow when summer temperatures cause it to expand. Always leave a slight gap at the top or bottom to accommodate this thermal movement.
Friction is the primary installation bottleneck. Pushing rigid plastic through oxidized, rusty, or slightly warped chain link fabric requires immense effort. The knuckles of the wire will grab the plastic, halting your progress. If the fence is racked along a slope, the diamonds elongate, pinching the slats even tighter.
Field-tested solutions resolve this issue. Mix a mild water-based lubricant, like dish soap and water, in a spray bottle. Lightly mist the fence fabric before inserting the slats. This reduces friction and allows the HDPE to slide smoothly. Additionally, if the fabric is too tight near the terminal posts, you can slightly loosen the tension bar to create a fraction of an inch of slack. Use heavy-duty pliers to gently open any crushed knuckles that block the slat path.
Evaluating the financial and operational trade-offs ensures you select a product that meets both your budget and your long-term property goals. The cheapest option is rarely the most cost-effective over a decade.
Compare the initial cost per linear foot. Basic tubular slats represent the most economical entry point. Premium winged, heavy-duty, or hedge slats carry a higher upfront cost. However, you must evaluate the return on investment over a 10 to 15-year horizon.
Premium slats feature thicker wall extrusions and higher concentrations of UV inhibitors. These chemical additives prevent the plastic from becoming brittle and fading under direct sunlight. A cheaper slat manufactured from recycled plastics without adequate UV protection may save money today but require complete replacement in five years due to sun damage and cracking. Investing in UV-stabilized virgin HDPE lowers the long-term maintenance burden and keeps the fence looking uniform.
Never commit to a bulk purchase without visual verification. Order material samples first. Digital photos on a monitor cannot accurately represent opacity, color depth, or visual texture.
Take the physical samples outside. Evaluate the color accuracy in real-world lighting against your house and landscaping. More importantly, test the exact mesh fit. Slide the sample into your fence to verify the clearance, friction, and locking mechanism compatibility before ordering 20 bags of material. Testing a sample is the only guaranteed way to know if the product will slide past your specific wire gauge and selvage type.
Measure your mesh size from parallel wire to parallel wire to determine exact compatibility before selecting a slat width.
Inspect your fence posts and footings to ensure the structure can handle the increased wind load created by high-privacy slats.
Order physical samples to test the fit, verify the color in natural light, and confirm the privacy yield meets your expectations.
Calculate your total linear footage and add a 10% overage to account for gate cuts and installation waste.
Utilize a water-based lubricant spray during installation to reduce friction and prevent damage to the HDPE materials.
A: No. The fence must be structurally sound with secure concrete footings. The mesh size and wire gauge must also match the specific requirements of the slat you intend to purchase. Fences with bent top rails or leaning posts should be repaired prior to installation.
A: Hook your tape measure on the inside edge of one wire and measure straight across to the inside edge of the parallel wire. Do not measure diagonally from corner to corner, as this will result in an inaccurate, oversized measurement.
A: No, but they significantly reduce airflow. Standard tubular slats block about 75% of the wind, while winged slats can block up to 98%. This reduction in airflow creates a heavy wind load on the fence posts, requiring sturdy structural support.
A: Top-locking slats use a horizontal channel that snaps over the top of the inserted slats, leaving a visible plastic line. Bottom-locking slats require threading a track through the bottom fence diamond before inserting the slats, resulting in a cleaner appearance at the top rail.
A: Yes. You can cut HDPE slats using heavy-duty shears, a fine-tooth hacksaw, or a circular saw with a fine-tooth blade. Ensure you leave enough room for the locking channel and adequate ground clearance to prevent buckling.
A: Rattling occurs when the slat width is too narrow for the existing mesh size. For example, installing a 1-¼ inch slat in a 2-⅜ inch mesh leaves excessive clearance. Choosing the correct width or upgrading to a winged slat eliminates this noise.
